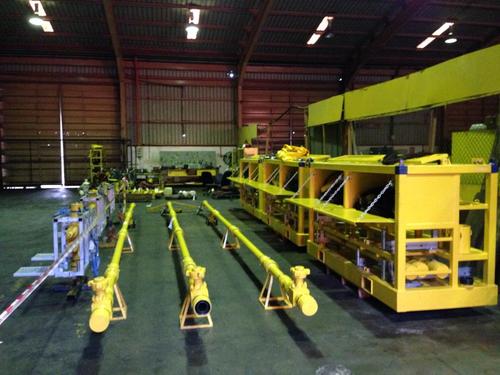

Manufacturing

Geowell provides a unique service offering of well completion and intervention accessories.

We can offer to provide threaded accessories and connection threading, slickline and thru-tubing tools and also perform print part manufacturing to order, using state of the art technology and quality systems.

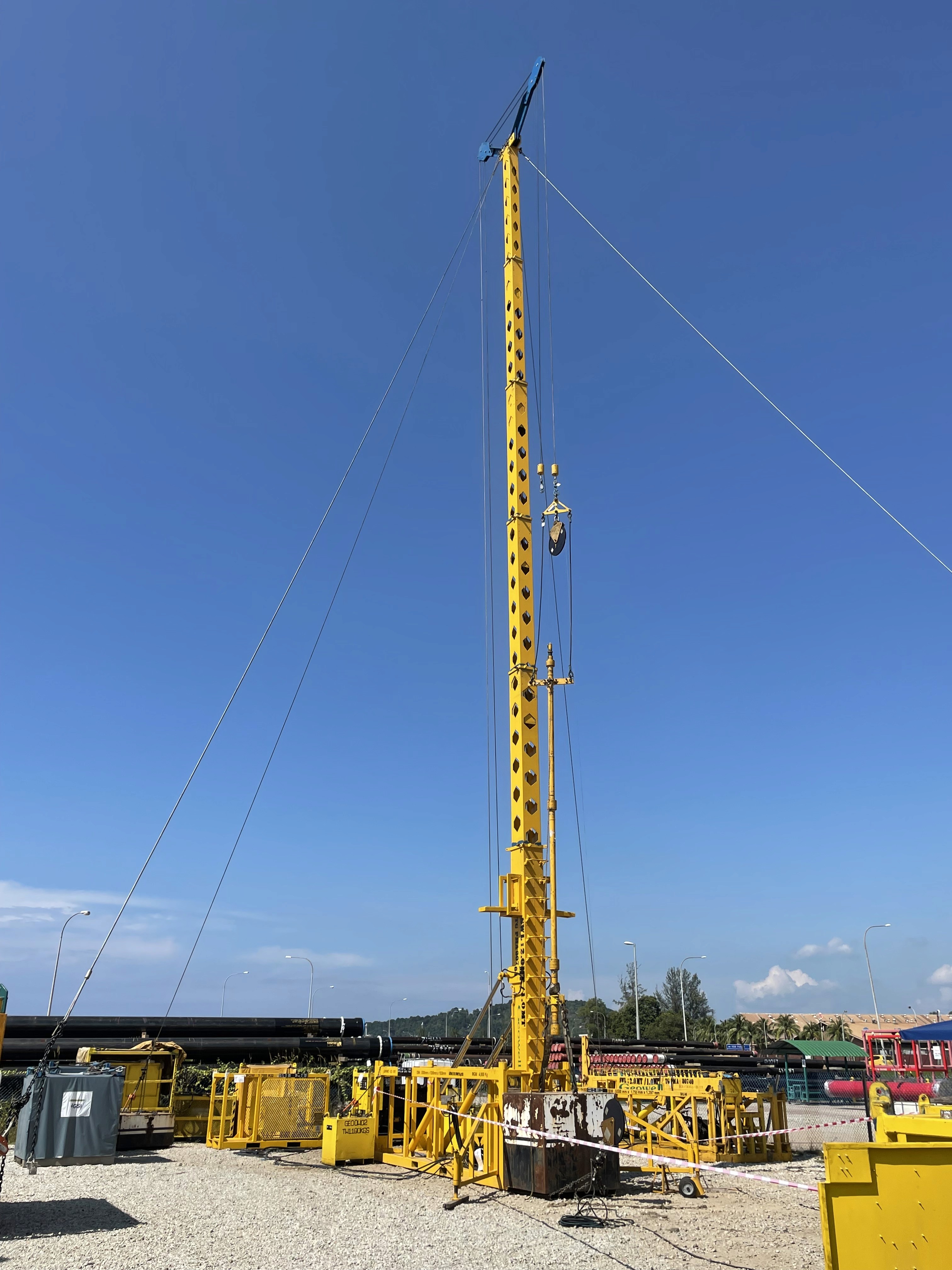

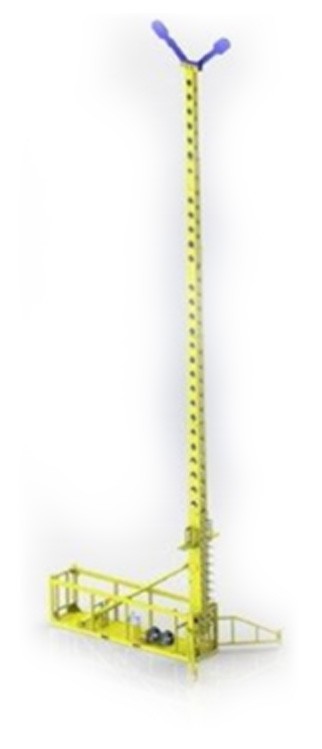

70ft Wireline Mast

Feature:

  • Hydraulically operated mast sections are easily erected by 2 men in approximately 15 minutes. The mast can be extended to 70ft and requires an external hydraulic powerpack.

  • With a high safe working load, this unit is designed for light to heavy duty slickline operations, and can withstand strong side winds.

  • This telescopic wireline mast is compact, rigid and stable, for work in the toughest conditions.

  • All-steel construction - for maximum strength in minimum dimensions.

  • Locked each boom's column for extensive safety features.

  • The lock operator console with stainless steel color coded engraved with English letter

Dimensions & Weights

  • Transport Dimensions: (L) 5500 mm, (W) 1200 mm, (H) 1930 mm

  • Weight: 4,800 kg

  • Height: 70 feet

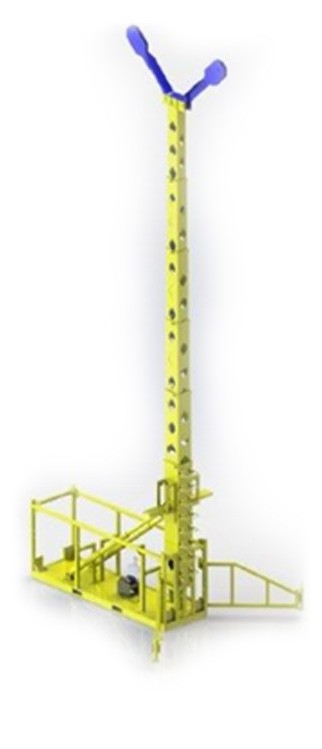

40ft Wireline Mast

Feature:

  • Hydraulically operated mast sections are easily erected by 2 men in approximately 15 minutes. The mast can be extended to 40ft and requires an external hydraulic powerpack.

  • With a high safe working load, this unit is designed for light to heavy duty slickline operations and can withstand strong side winds.

  • This telescopic wireline mast is compact, rigid and stable, for work in the toughest conditions.

  • All-steel construction - for maximum strength in minimum dimensions

  • Locked each boom's column for extensive safety features

  • The operator console with stainless steel color coded engraved with English letter.

Dimensions & Weights

  • Transport Dimensions: (L) 4000 mm, (W) 1200 mm, (H) 1930 mm

  • Weight: 3,500 kg

  • Height: 40 feet

Technical Specification

  • Under Hook Height (m): 12.00

  • Column Safe Working Load (Kgs): 10,000

  • Winch Lift and Hold Capacity (Kgs): 1,500

  • Foot Print (m): 5.290 x 4.015

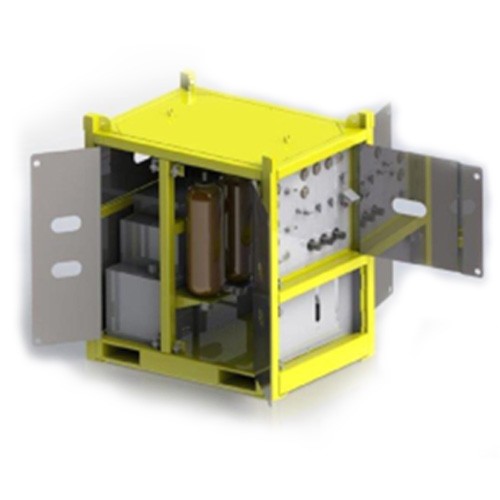

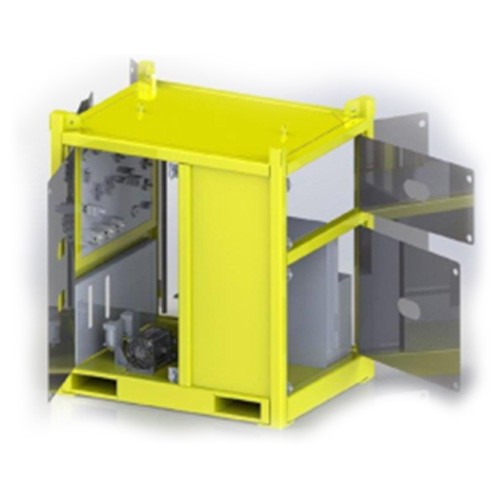

10K-PSI Wellhead Control Panel

Feature:

  • Application for Dual RAM - BOP Control Panel and to actuate SCSSV and SSV by hydraulic

  • 20-liters and 55-litres Hydraulic Reservoir Tank

  • 40 liters Accumulator for back up operation of BOP (can be operated 3 times open-close-open for BOP size 7", below that size can be more than 3 times)

  • High quality valves, gauge, tubing and fittings

  • Emergency Shutdown (ESD) System for BOP, SCSSV and SSV (automatically closed) from remote up until 30 meters

  • Complete with 10 liters Air Receiver Tank, as back up when no source of air found

  • Complete with manual back up hand pump to run SCSSV and SSV.

Dimensions & Weights

  • Transport Dimensions: (L) 1450 mm, (W) 1100 mm, (H) 1622 mm

  • Weight: 2,000 kg

Technical Specification

  • Pump specification for BOP:

  • Air driven Pump, AW-52

  • Pressure outlet, max; 8,000 psi

  • Flow: 30 litres/minute

  • Pump specification for SCSSV and SSV:

  • Air Driven Pump, MHP-110

  • Pressure outlet, max: 13,500 psi

  • Flow: 2.0 litres/minute

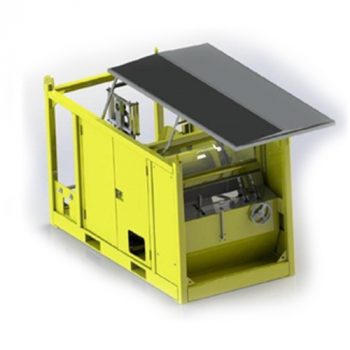

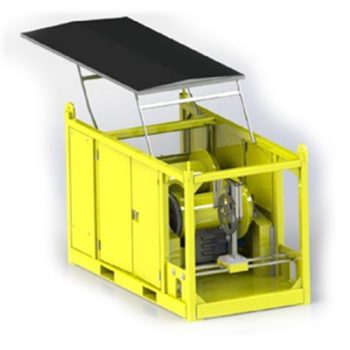

Double Drum Unit

Feature:

  • Reel Capacity:

  • Upper Drum: 25,000 Feet of 0.105" Wire, interchangeable with 0.125" Wire

  • Lower Drum: 25,000 Feet of 0.125" Wire, interchangeable with 0.140" Wire.

  • Gear Box: 4-Speed Heavy Duty Funk Transmission.

  • Splitter Gearbox to Change Drive between Drums, reduce noise and vibrate.

  • Duplex Sprockets and Chain Drive Power Transfer.

  • Dual Handle Operated Band Brakes One for Upper Drum and One for Lower Drum.

  • Hand Wheel Drive Level Wind Mechanism for Measuring Head Assembly Both Wire.

Dimensions & Weights

  • Transport Dimensions: (L) 2600 mm, (W) 1320 mm, (H) 1611 mm

  • Weight: 3,000 kg

Technical Specification

  • Hydraulic Motor Vickers 35M115:

  • Displacement: 7.44 in2/rev (121.9 cc/rev)

  • Torque: 115 lb.in / 100 Psi.

  • Maximum Pressure: 175 bar (2537.5 Psi.).

  • Speed Range: 3,000 rpm.

  • 1" Dual Cross Over Relief Valve (Hydraulic Motor Safety)

  • Power Output and Speed at 1800 RPM of Engine (Powerpack):

  • Upper Drum: Power: 4500 to 7800 lbs at 1st gear & Speed: 2200 to 3600 fpm at 4th gear

  • Lower Drum: Power: 5000 to 8900 lbs at 1st gear & Speed: 1800 to 3000 fpm at 4th gear

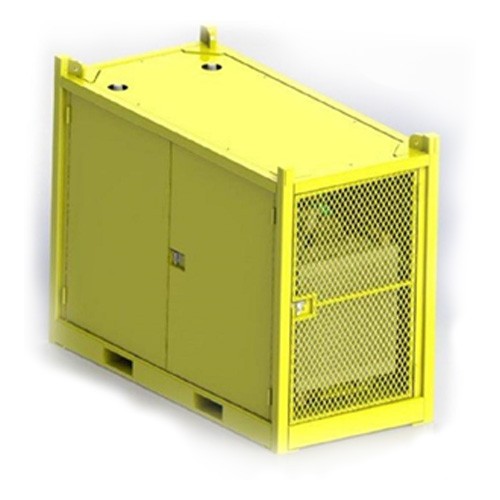

Zone 2 Powerpack Unit

Feature:

  • All Steel Welded Crash Frame

  • 4 Point Lifting Eyes

  • Forklift Pockets

  • Protective Moving Parts Guard and Side Frame

Hydraulic System:

  • Open Loop System

  • Eaton-Vickers Hydraulic Pump Model 35VQ35

  • Relief Valve CT 10 F 30

  • Hydraulic Oil Cooler

Zone 2 Specification:

  • Perkins Engine: 4 Cyl Type 1104A-44T or 6 Cyl

  • Variable Speed Engine, IOPU type

  • Chalwyn air intake over speed shutdown valve completed with air intake flame trap

  • Manual shut-off lever for over speed shutdown valve

  • Exhaust gas manicooler, designed to limit temperature of exhaust gas and cooler surface to T3 (2000C).

  • Exhaust Flame Trap

  • Fuel and Water Coolant to T5 (100oC) Safety Shutdown Valve

  • Stainless Steel Spark Arrestor

  • Engine Safety shutdown system, designed to give automatic shutdown of both intake air and fuel in the event of:

  • Engine over speed

  • High Coolant Temperature

  • Low Oil Pressure

  • Fuel Control Safety Shutdown Valve

  • Radiator fan assembly (with non-metallic fan and anti-static fan belt) and radiator

  • Secure Screwed Dipstick
